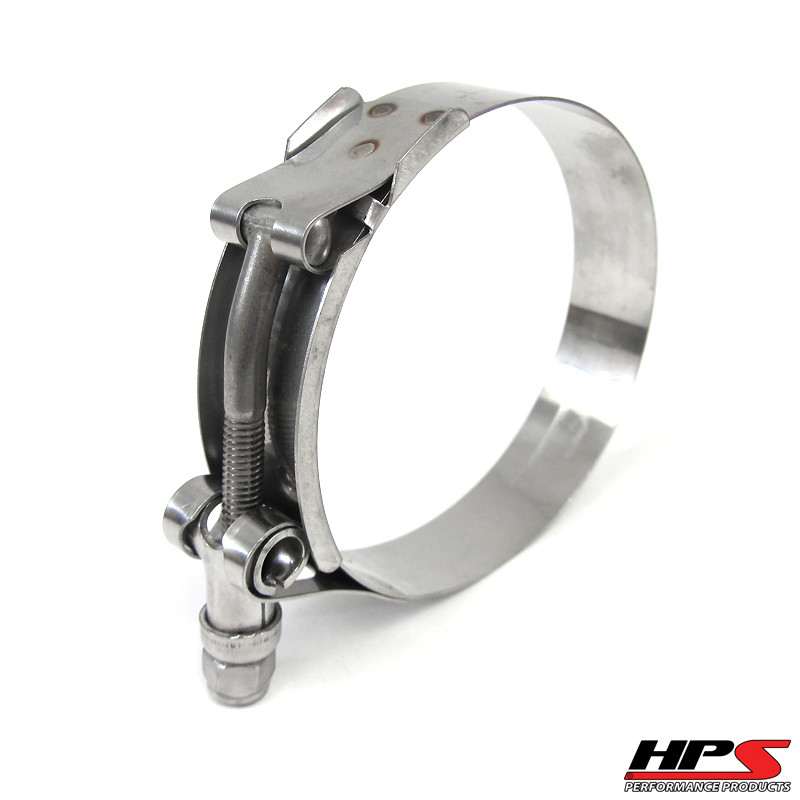

HPS Marine 316 Stainless Steel T-Bolt Hose Clamp , Range: 2.87″-3.19″ (73mm-81mm), SAE # 68
HPS Marine 316 Stainless Steel T-Bolt Hose Clamp , Range: 2.87″-3.19″ (73mm-81mm), SAE # 68
$8.63
$8.20
HPS 100% marine grade 316 stainless steel T Bolt hose clamp. Effective range: 3″ – 3.31″ (76mm-84mm) . SAE # 68. Fits HPS silicone hose with 2.75″ (70mm) ID. The 316 T-bolt band clamps perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. It is recommended that two clamps be used on each end of a wet exhaust installation.
Description
HPS 100% marine grade 316 stainless steel T Bolt hose clamps with effective range 3″ – 3.31″ (76mm-84mm) perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp; therefore 316 tbolt clamps are commonly used to provide leak-proof connections on marine engine and exhaust systems. Professionals also utilize the high strength 316 T Bolt clamps in applications such as water treatment and sewage systems, military, filter bags, telecommunication devices, sanitary systems, food and pharmaceutical processing equipment.
Technical Specification– Perform well in saltwater applications and offer better corrosion resistance than the standard 304 T-bolt band clamp
– SAE # 68
– Effective Size Range: 3″ – 3.31″ (76mm-84mm)
– 100% Marine Grade 316 Stainless Steel Band, Bolt and Nut
– High strength with superior welded construction
– Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
– 3/4″ (19mm) band width with floating bridge
– Band thickness: 0.6mm
– Maximum Torque Spec 75 in. lbs
– Quantity: 1
REMARK: Two clamps are recommended to be used on each end of a wet exhaust installation.
Specifications
| Effective Diameter |
2″ – 2.99″ 3″ – 3.99″ |
See more like this See more like this |
|---|---|---|
| Quantity | Single | See more like this |
Details
| Manufacturer Part # | 316-SSTC-73-81 |
|---|---|
| Weight | 0.32 lbs (0.1 kg) |
| Height | 1″ (2.5 cm) |
| Width | 4″ (10.2 cm) |
| Length | 4″ (10.2 cm) |
| CARB compliant | Yes (see note below) |
Size and weight of different configurations may vary. For exact product weight and dimensions, please refer to the manufacturer’s spec sheets or sizing sheets included in the description above or contact us.
